Fin Press & Fin Die

Expander

Tube Straightener & Cutting Machine

U Bender

Hairpin Bender

Other HVAC Machines





Fin Press & Fin Die

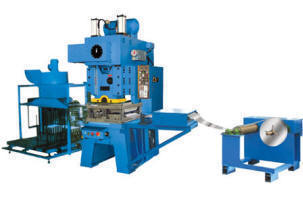

Fin Press line for the punching of air conditioner fins is specially intended for meeting requirements for the production air conditioner fins. the line mainly consist of uncoiler. oil tank, fin press, vacuum sucker, stacker and relevant electrical control system.

In this production line, PLC counter and contact point free cam controller are adapted to meet the requirements of counting the fins cut collected as well as the function of progress change.

Production line of special specifications can be made subject to the user's requirements.

Also required information to design a die are listed below:

  • Pattern (Staggered or Parallel)

  • Number of Rows

  • Fin Surface

  • Distance between Rows

  • Distance between Holes in a Row

  • Plate's Material

  • Thickness of Plate

  • Collar Height

Below technical data and specification are related to 450 to 800 kN fin press machine. Please contact our technical sales engineers for further details.



Specification
Nominal Pressure kN 450 ~ 800
Nominal Pressure Stroke mm 1.5
Stroke of Slide mm 40
Strokes SPM 100-180
Max Dia. Set Height mm 270 ~ 290
Dia. Height Adjustment mm 70 ~ 80
Depth of Throat mm 300
Distance Between Uprights mm 510 ~ 600
Size of Table mm 800×580 ~ 900×580
Thickness of Table mm 80 ~ 100
Bottom Size of Slide mm 500×300 ~ 600×350
Hole for Punch Chank (dia Depth) mm 50×60
Overall Dimensions mm 6500×2500×3000
Mounting Size of Foot Bolt mm 760×1090 ~ 670×1340
Air Pressure MPa .5
Total Weight kg 600 8500
Max. Allowed Engaging Time at Single Operation   15
Width of Material mm 300
Stack Lenth mm 800-1000
Collecting Height of Material mm 600
Inner Diameter of Material Rolling mm 75
Outer Diameter of Material Rolling mm 850

Complete technical data and specific characteristics of our Fin Press machines are listed in our quotation. Please contact our technical sales engineers for further details.



Expander

Vertical, Horizontal, Portable



Expanding of coils is one of the most diversified areas in coil manufacturing. Huge variety in coil dimensions, different tube materials, such as aluminum, copper, steel and stainless steel, different tube thickness. Each of these variables demanding a different solution.


Starting from a single tube expander up to a multi-rod expander, 400 rods. Possibility to have a fully automatic control: automatic height set-up as well as single rod selection.

On the multi-rod vertical expander, equipped with NC, the set-up time has been reduced to less than 5 minutes, offering the highest flexibility on the market.



Required information to choose an expander are listed below:

  • Machine Type (Portable, Vertical or Horizontal)

  • Effective Length (Horizontal) or Height (vertical)

  • Layout Pattern (Staggered, Parallel)

  • Number of Rows & Holes

  • Tube Diameter

  • Control System (PLC, Auto Traditional)







Tube Straightener & Cutting Machine

Automatic machines to straighten and cut tube wound in coils, for the production of heat exchanger coils. Tube feeding is performed by a suitable unit: the tube is brought to the required length and then cut with an orbital cutting system that yields a burr-free cut.





Required information to choose this machine are listed below:

  • Maximum Cutting Length

  • Tube Diameter

  • Tube Thickness

  • Material

  • Number of Cutting per Cycle plus extra Dies for Other Tube Diameters

  • Control System (PLC, Auto Traditional)







U Bender

Fully automatic machine to manufacture return bends, straight and elbows starting from copper tube in coils.

As option the machine can be equipped with extra tools for cross-over production. The machine is supplied with a soundproof cabin, in full accordance with international Safety Standards.

Required information to choose this machine are listed below:

  • Tube Diameter

  • Tube Thickness

  • Material

  • Pitch (Center to Center of Tube)

  • Number of Tubes per Cycle plus extra Dies for Other Tube Diameters

  • Height of U

  • Control System (PLC, Auto Traditional)





Hairpin Bender









Machine is equipped with a 3 tube tooling for 3/8" tube, a 2-tube tooling for 5/8" tube and 2-tube tooling for 1/2" tube.



Required information tchoose this machine are listed below:

  • Length of Total Tube

  • Length of Bended Part

  • Tube Diameter

  • Tube Thickness

  • Material

  • Pitch (Center to Center of Tube)

  • Number of Tubes per Cycle plus extra Dies for Other Tube Diameters

  • Control System (PLC, Auto Traditional)





Other HVAC Machines

are available according to the customer's request



Coil Bending m/c

O-Ring Making m/c

O-Ring Inserting m/c

De-Burring m/c

Automatic Hair Pin Bender m/c

Punching m/c for End & Side Plates

Automatic brazing m/c
