Advantages
- shortest
cycle times
- free
adjustable distance of the dies in forward and backward movements
- free
adjustable speed levels for dies
- low
maintenance
- die sliding
block driven and adjusted with servomotor controlled by direct distance
measuring system
- free
programmable allocation of the dies to the two clamp stations
- free choice
of dies in accordance to endform part drawing (3 up to 8) servo-motor
- complete
cycle time/cycle ca. 2,5 seconds inclusive closing and opening the clamp
station
- operation of
machine is started automatically after the work

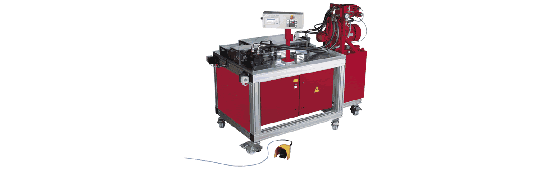

The hydraulic Tube Endforming Machine REB has been designed to
rationally flange, expand, and crimp tubes.
We can deliver the following types.
Pressure 6,3 to up to 25,0
to
Optional equipment
- tool changing
device
- NC-axis
- Touch-Screen
Upon request, the machine can be equipped to endform tubes on both ends
simultaneously.
Complete technical data and specific characteristics of out
tube endforming machines are listed in our quotation. Please
contact our technical sales engineers for further details. |
