This bending device is universally applicable to bend tubes with up to
Ø 10 mm and wires with up to
Ø 5 mm.
With copper and aluminum only tempered tubes may be used.
Due to
its modular design this concept offers almost unlimited possibilities.
- suitable for
large, medium, and small series
- excellent bending repeatability
optimum measuring
accuracy
- tubes/wires cannot shift during the bending process
- standard
design
- rational manufacturing
- easy and fast handling
- time-saving
- short amortization
period
Fields of application:
Aircraft and vehicle design, mechanical
engineering, household appliances, heating systems, etc.
Disadvantages of conventional systems:
The use of fully automatic
systems to replace manpower is usually rather expensive and also entails a
high investment risk.
Another disadvantage is the fact that even
slight changes in the product may require time-consuming and expensive
retrofitting
of the machine or in some cases even a completely new
machine or operating system:

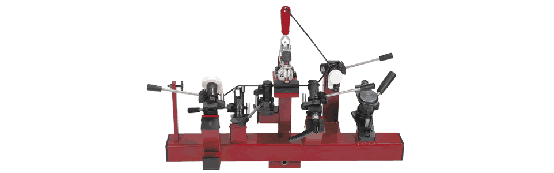

Our complete bending device consists of:
- a welded basic frame
- X-bending
units
- manual
quick-release fasteners
- adjustable length stop
To ensure an optimum operating cycle, all bending sequences are
individually determined. Consequently, all turning and bending angles are
also adapted to each bending step.
|
