Fields of application:
- repairs
- sanitary installation and plumbing
- samples/testing
- prototypes and
tests
- instruction and schooling
- for tubes and wires
Our hand-operated benders are easy to transport and can thus be quickly
used for all kinds of applications.
Complete technical data and
specific characteristics of our Mobitec bending machines are listed in our
quotation.
Please contact our technical sales engineers for further
details.

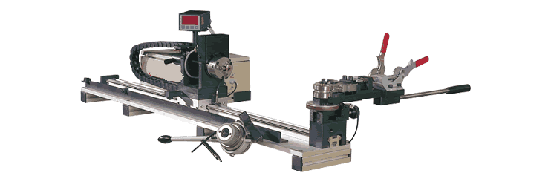

With our EHB bending machines we distinguish between three models:
SEHB 1 and SEHB 2
These hand-operated benders work according to the
classical pipe bending principle (turning tools - running along pipe).
The pipe is clamped into a jaw chuck (or collet chuck) with 360° -
gradu- ation. Fixed position of the longitu- dinal feed, the twisting
angle can be pre-adjusted. The bending angle is readable on a graduated
dial.
Both devices are available with LED.
SEHB 0
The "small" hand-operated bender for simple bends.
This
device can be clamped in each vice and is therefore extremely versatile
and flexible. |
SEHB 0
Small hand-opeated bender for up to
Ø 16.0 mm
SEHB 1
hand-operated bender for up Ø 16.0 mm
SEHB 2
hand-operated bender for up Ø 20.0 mm
|
