ماشینهای اره نواری
افقی و عمودی |
|
|
|
|
|

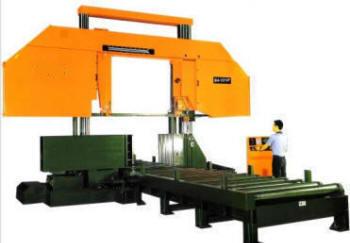

اره نواری افقی برای کارهای
سنگین
برش مقاطع فولادی، آلومینیومی
با ابعاد بزرگ
|
|
|
Specification |
|
Max. Capacity |
Round |
1100 mm (43.3") |
|
Width |
1300 mm (51") |
|
Saw Blade |
Speed |
15 -80 mpm (49 - 262 fpm) |
|
Size |
11000L x 80W x 1.6T mm (433" x 3 1/8" x 0.06") |
|
Tension |
Hydraulic |
|
Guides |
Carbide guides with hydraulic clamping device |
|
Cleaning |
Independent wire brush system and flood coolant |
|
Motor Output |
Balde |
15 hp (11.2 kW) |
|
Hydraulic |
3 hp (2.25 kW) |
|
Coolant |
1/2 hp (0.375 kW) |
|
Working Feeding |
Hydraulic driven workbed with rollers |
|
Vise |
3 sets of full stroke hydraulic vise cylinder |
|
Weight |
13700 kgs (30140 lbs) |
|
Floor Space |
2200 x 4900 x 3500 mm (86.6" x 193" x 137.8") |
|
|
اره نواری

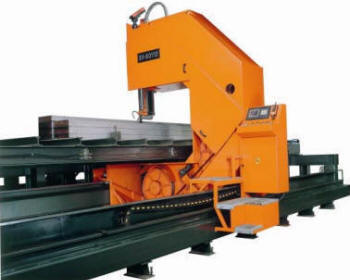

عمودی با وسیله لیزری
برش مقاطع طولانی از فولاد و
آلومینیوم
|
|
|
Specification |
|
Max. Capacity |
Height |
660 mm (26") |
|
Throat |
1100 mm (43") |
|
Cutting length |
2000 - 7000 mm (79 - 276") |
|
Saw Blade |
Speed |
12 -80 mpm (39 - 262 fpm) |
|
Size |
7440L x 67W x 1.6T mm (293" x 2.6" x 0.06" |
|
Tension |
Hydraulic |
|
Guides |
Carbide guides |
|
Cleaning |
Powered wire brush system and flood coolant |
|
Motor Output |
Balde |
10 hp (7.5 kW) |
|
Hydraulic |
2 hp (1.5 kW) |
|
Coolant |
1/4 hp (0.19 kW) |
|
Feed |
2 hp (1.5kW) |
|
Working Feeding |
Lift and feed rollers |
|
Vise |
T-slotted table option with mechanical top clamp |
|
Weight |
23000 kgs (50600 lbs) |
|
Floor Space |
Bed Height |
1500 mm (59") |
|
Length (for 6000 mm) |
9200 mm (362") |
|
width |
4000 mm (157") |
|
height |
3650 mm (144") |
|
|
اره نواری
افقی

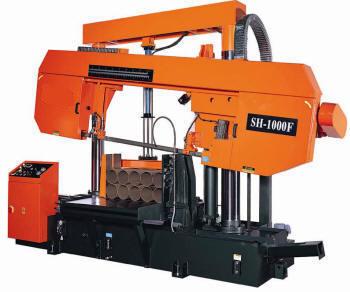

برش بندل لوله و میله گرد
(اتوماتیک، نیمه اتوماتیک)
|
|

|
Specification |
|
Max. Capacity |
Angle |
90˚ |
45˚ |
30˚ |
|
Round |
420 mm (16.5") |
400 mm (16") |
250 mm (10") |
|
Width |
650 mm (25.6") |
400 mm (16") |
400 mm (16") |
|
Saw Blade |
Speed |
20 -10 mpm (66 - 330 fpm) |
|
Size |
5300L x 34W x 1.1T mm (209" x 1.25" x 0.042" |
|
Tension |
Hydraulic |
|
Guides |
Carbide guides |
|
Cleaning |
Powered wire brush system and flood coolant |
|
Motor Output |
Balde |
55 hp (3.75 kW) |
|
Hydraulic |
1 hp (0.75 kW) |
|
Coolant |
0.125 hp (0.1 kW) |
|
Working Feeding |
Manual |
|
Vise |
Full stroke Hydraulic cylinder with two guide columns |
|
Meter Cutting |
Swivel sawhead, 60˚ maximum |
|
Weight |
1500 kgs (3300 lbs) |
|
Floor Space |
2750 x 1850 x 1900 mm (18" x 73" x 75") |
|
|
اره نواری

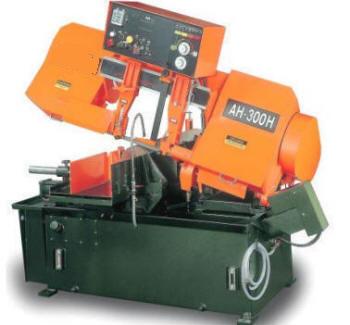

افقی سایز متوسط
برش مجموعه لوله و میله گرد
(اتوماتیک، نیمه اتوماتیک)
|
|
|
Specification |
|
Max. Capacity |
Round |
300 mm (12") |
|
Width |
355 mm (14") |
|
Saw Blade |
Speed |
50 Hz: 23 - 67 mpm (75 - 220 fpm) 60Hz: 27 - 80 mpm (89 - 262
fpm) |
|
Size |
3660L x 34W x 1.1T mm (144" x 1.33" x 0.04") |
|
Tension |
Hydraulic |
|
Guides |
Carbide guidesng device |
|
Cleaning |
Powered wire brush system and flood coolant |
|
Motor Output |
Balde |
5 hp (3.75 kW) |
|
Hydraulic |
1 hp (0.75 kW) |
|
Coolant |
1/8 hp (0.1 kW) |
|
Working Feeding |
Hydraulic automatic |
|
Vise |
Stationary and movable hydraulic vise |
|
Weight |
1700 kgs (3740 lbs) |
|
Floor Space |
1890 x 1905 x 1700 mm (74.5" x 75" x 66.9") |
|
|
|
|
|
|
جداول زیر شمار را برای انتخاب مدل دستگاه
مورد نیاز راهنمایی می کنند. |
|
Model Explanation |
| Part |
قسمت اول |
|
قسمت دوم |
|
قسمت سوم |
| Model Number |
X |
X |
|
Y |
Y |
Y |
Y |
|
Z |
Z |
Z |
|
| |
|
قسمت اول: پیشوند |
|
Number |
Explanation |
Applicable Models |
|
MH |
Manual Horizontal |
MH-812LC, MH-1016JA |
|
SH |
Semiautomatic Horizontal |
SH-1016JYM, SH-2028M |
|
AH |
Automatic Horizontal |
AH-300H |
|
NC |
Numeric Control (99 job programmable) |
NC-250H, NC-7652H |
|
C |
Smart NC Control with 20 programmable jobs |
C-250NC, C-330NC |
|
R |
Roller Feed Programmable Automatic Series |
R-1010NC |
|
SV |
Semi-Automatic Vertical |
SV-4060 |
|
| |
|
قسمت دوم: میانی |
|
Number |
Explanation |
Applicable Models |
|
In mm |
Numbers in the middle indicate the maximum capacity in ¡§mm¡¨.The
maximum capacity for AH-250H is round 250mm. |
AH-series, SNC-20 series,
NC-series,roller feeding series,
MH-330ER, SH-330ER,
C-330NC, Billet Saw Series (SH-1010, SH-1311P), Plate Saw Series
(SV-4060) |
|
In inch |
Numbers in the middle indicate the maximum capacity in ¡§inch¡¨.The
maximum capacity for MH-1016JAM is rectangular 10¡¨ (H) x 16¡¨
(W). |
Small saws such as MH-1016JA,
SH-1016JYM, MH-812LC,
AH-1010JAY.
Large Mitering Saw Series (SH-2028M, SH-2640DM) |
|
| |
|
قسمت سوم: پسوند |
|
Number |
Explanation |
Applicable Models |
|
H |
Standard hydraulic shuttle vise |
AH-250H, NC-300H |
|
C |
Hydraulic roller feeding(note: As an exception, AH-1010JAY is
also hydraulic roller feeding) |
AH-260C, AH-360C |
|
NC |
Smart NC control with 20 programmable jobs |
C-300NC, C-360NC |
|
BR |
One-sided mitering cutting (45¢X swivel head) |
MH-330BR, SH-330BR |
|
ER |
One-sided mitering cutting (60¢X swivel head) |
MH-330ER, SH-330ER |
|
M |
Miter (one-sided) (work bed swiveling) |
MH-1016JAM, SH-1016JYM, SH-2028M, SH-65100M |
|
DM |
Double miter (work bed swiveling) |
SH-2640DM, SH-75150DM |
|
JAY |
N/A |
AH-1010JAY |
|
LC |
N/A |
MH-812LC |
|
|
اطلاعات فنی و مشخصات کامل دستگاه در پیشنهاد قیمت
ارسالی ارایه خواهد گردید. لطفا برای کسب اطلاعات بیشتر با مهندسین
مربوطه در واحد فروش تماس حاصل فرمایید. |
| |
| |
